In this codelab, you will create a cohesive workflow which takes source code and builds, tests, and promotes it to production. This will be accomplished via 3 pipelines:
- Bake & Deploy to Test
- Validate Test
- Promote to Prod
We are assuming you have completed configuring Spinnaker with OpenStack. In this example, we will be using Jenkins to trigger our pipelines.
In this first exercise, you’ll set up a pipeline, named Bake & Deploy to Test, which builds an OpenStack image, deploys it as a server group to a test cluster, then destroys the previous server group in that cluster (also called the "Highlander" strategy). We will be triggering this pipeline with a Jenkins continuous integration job.

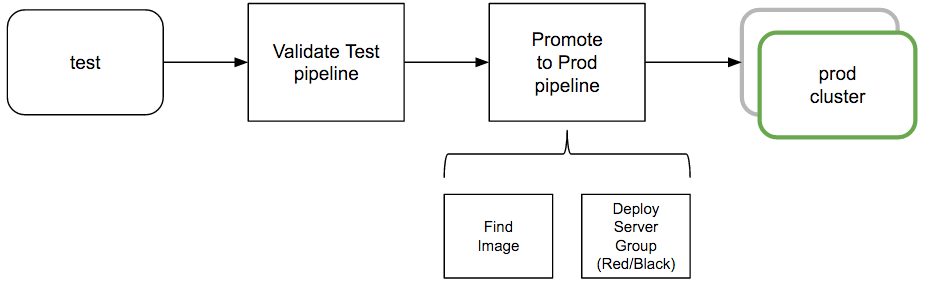

The workflow is shown in the figure below.
Navigate to Spinnaker at http://localhost:9000.
From the Spinnaker home page, create a new Spinnaker Application by clicking on the Actions drop down at the upper right and clicking on Create Application.
In the New Application dialog:
- Enter "codelab" for Name.
- Enter your email for Owner Email.
- Click in the Accounts field and choose “my-openstack-account”.
- Click the Create button.
First we create a security group for your cluster. Navigate to the "SECURITY GROUPS" tab and click the Create Security Group button:
- Enter "test" for Stack.
- Enter "http" for Detail.
- Enter a relevant description for Description.
- Enter your preferred region for Region.
- Enter your preferred port forwarding specifications in the Ingress section.
- Click the Create button.
Navigate to the "Load Balancers" tab and click the Create Load Balancer button:
- Enter “test” for Stack.
- Enter "lb" in the Detail field.
- Select your preferred subnet in the Subnet dropdown.
- Select your preferred network in the Network dropdown.
- Select "codelab-test-http" in the Security Groups dropdown.
- Edit the Listeners section to your preference.
- Click the Create button.
The purpose of this pipeline is to generate a OpenStack image from a package, and then deploy the image on server groups in the test cluster. We want this pipeline to be kicked off every time the Jenkins continuous integration job completes.
Create a new pipeline by navigating to the PIPELINES tab and clicking the New button
- Name the pipeline “Bake & Deploy to Test”.
- Click the Create Pipeline button.
The first step in setting up a pipeline is to configure the pipeline. In particular, we need to specify an automated trigger that will kick off the pipeline. We will be using Jenkins.
We want this pipeline to kick off every time our Jenkins job completes. In the Automated Triggers section of the pipelines form:
- Click Add Trigger.
- Select “Jenkins” from the drop down menu for Type.
- Specify your Jenkins instance for the Master field.
- Specify your job name for the Job field.
Refer to the figure below for an illustration of what the pipeline’s Configuration form looks like when we’re done.
The purpose of our “Bake” stage is to create a OpenStack image with the package that was built by the Jenkins job that triggered this pipeline.
- Click Add stage.
- Select “Bake” in the Type drop down.
- Select your preferred region in the "Regions" field.
- Enter the package you wish to include in the Package field.
- Select your preferred base image as in the Base OS field.
- Click the "Save Changes" button.
The purpose of the “Deploy” stage is to take the OpenStack image constructed in the “Bake” stage and deploy it into a test environment.
- Click Add stage.
- Select “Deploy” in the Type drop down.
- In the Server group section, click Add server group.
- In the dialog that appears, click Continue without a template.
- In the Location section, enter “test” in the Stack field.
- In the Instance Settings section, choose your preferred type in the drop down.
- In the Cluster Size section, enter your size preferences.
- In the Access section, input the load balancer and security group we created earlier.
- Click the "Add" button.
- Save this stage of the pipeline.
In this tutorial use case, on successive deployments of new server groups to the test cluster, we don’t need the previous server group anymore.
- Click Add Stage.
- Select “Destroy Server Group” for Type.
- Check the region of the previous test server group that you want to destroy.
- Enter codelab-test for the Cluster.
- Select “Previous Server Group” for Target.
- Click Save Changes.
The pipeline is now complete. Take a moment to review the stages of this pipeline that you just built.
Now let’s run this pipeline. We trigger it by manually running a Build of the Jenkins job.
- Navigate to your Jenkins console.
- Click on the your previously configured job.
- Click Build Now.
It may take a while for the polling to trigger the job, but soon in the PIPELINES tab you can see progress, status and details.
The first time this pipeline is run, the Destroy Server Group stage will fail, because the selector for “Previous Server Group” will find nothing (no server groups presently in the test cluster). The Deploy stage, however, does succeed, so a test cluster will be created.
Try running it again, either by running another Build of the Jenkins job, or by manually triggering from the PIPELINES tab (click Start Manual Execution). It will succeed all the way, and your pipeline execution details will look like below:

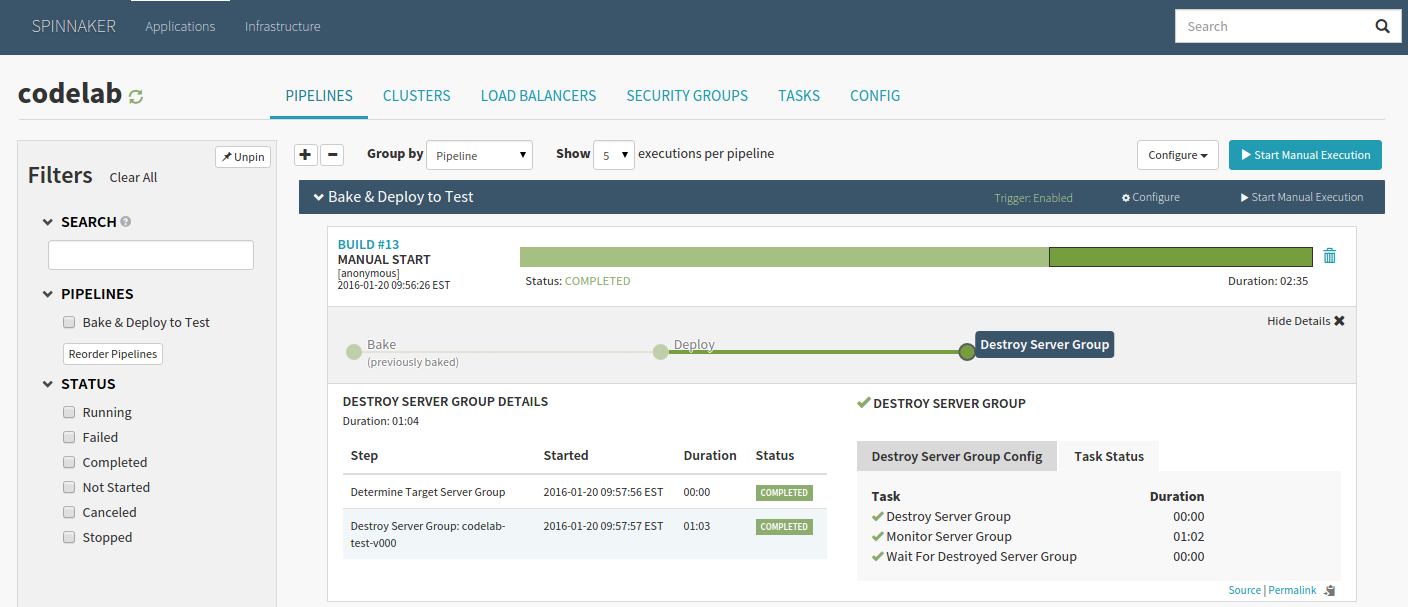

You can now see in the CLUSTERS tab that a new server group has been deployed to the test cluster, and the previous server group is destroyed (i.e. does not exist).
The second pipeline, named “Validate Test”, is a simple one-stage placeholder to represent some gating function before pushing to prod.
Furthermore, we configure the prod deployment to implement the red/black strategy (a.k.a. blue/green), which means that upon verifying health of the new server group it will immediately disable the previous server group in the same cluster. Here we disable rather than destroy, so that rollbacks can be quickly accomplished simply by re-enabling the old server group.
Create a new pipeline by navigating to the PIPELINES tab and clicking Configure, then Create New ...
- Name the pipeline “Validate Test”.
- Click the Create Pipeline button.
We want this pipeline to kick off when the Bake & Deploy to Test pipeline completes.
- Click Add Trigger.
- Select “Pipeline” from the drop down menu for Type.
- Select your application.
- Select the “Bake & Deploy to Test” pipeline.
- Check “successful”.
We stop and wait for human confirmation to continue:
- Click Add stage.
- Select “Manual Judgment” in the Type drop down.
- Specify Instructions, for example “Validate the test cluster”.
- Click Save Changes.
The third pipeline, “Promote to Prod”, takes the image that was deployed in the test cluster, and deploys that image to the prod environment, thereby promoting it.
We create a load balancer for the prod cluster. Navigate to the LOAD BALANCERS tab and click the Create Load Balancer button:
- Enter “prod” for Stack.
- Enter "lb" for Detail.
- Select your preferred subnet in the Subnet dropdown.
- Select your preferred network in the Network dropdown.
- Select "codelab-test-http" in the Security Groups dropdown.
- Click the Create button.
Create a new pipeline by navigating to the PIPELINES tab and clicking Configure, then Create New ...
- Name the pipeline “Promote to Prod”.
- Click the Create Pipeline button.

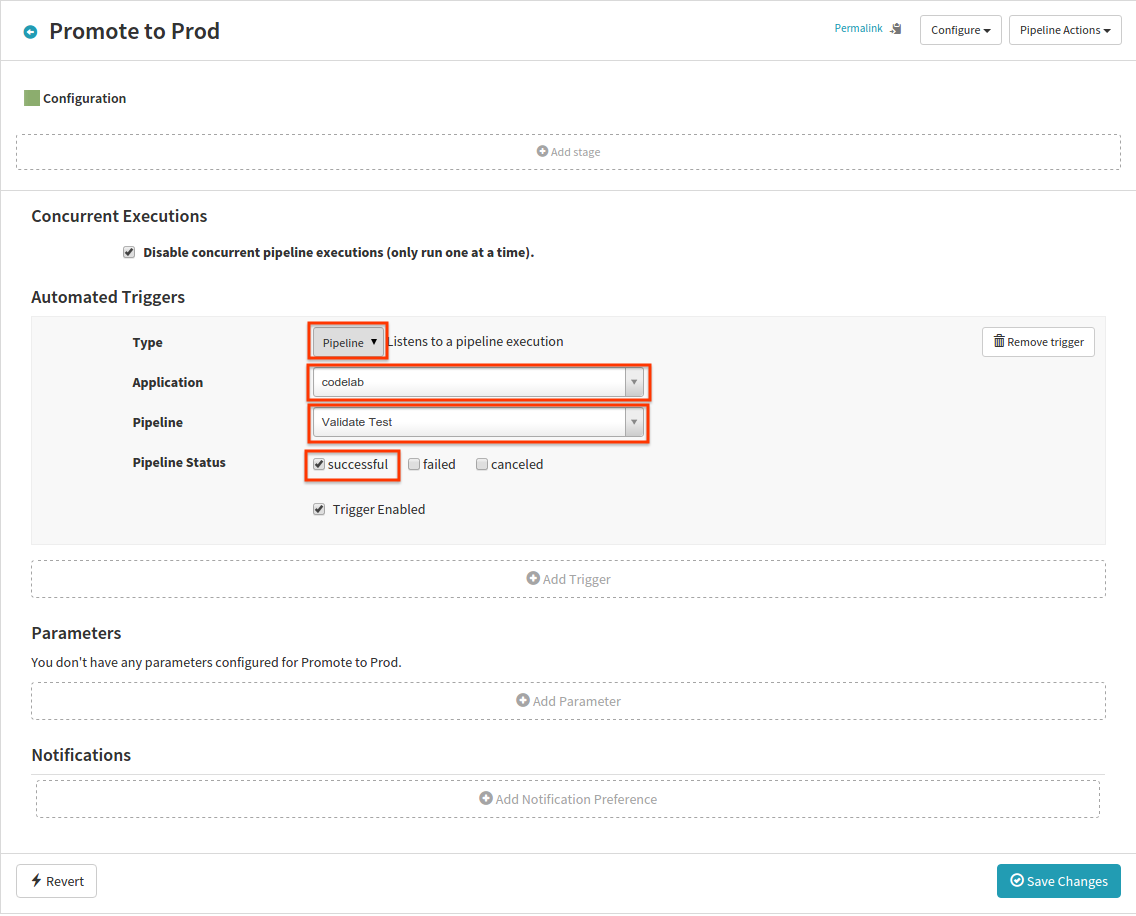

We want this pipeline to kick off when the Validate Test pipeline completes.
- Click Add Trigger.
- Select “Pipeline” from the drop down menu for Type.
- Select your application.
- Select the “Validate Test” pipeline.
- Check “successful”.
In the “Find Image from Cluster” stage, we select the image that was deployed in the test cluster.
Click the Add stage button:
- Select “Find Image from Cluster” for the stage Type.
- Check the region of the test server group to pick the image from.
- Enter codelab-test for the Cluster.
- Choose “Newest” for the Server Group Selection.
We deploy the image that was picked, to the prod cluster.
- Click Add stage.
- Select “Deploy” in the Type drop down.
- In the Server group section, click Add server group.
- In the dialog that appears, click Continue without a template.
- In the Basic Settings section, enter “prod” in the Stack field.
- (Optional) Select a deployment strategy. Default is none.
- Select your preferred option in the Instance Type drop down.
- In the Access section, add the prod load balancer and the security group we previously created.
- Click the Add button.
- Click Save Changes to save your prod pipeline.
Now let’s run through it all. Run a Build in Jenkins.

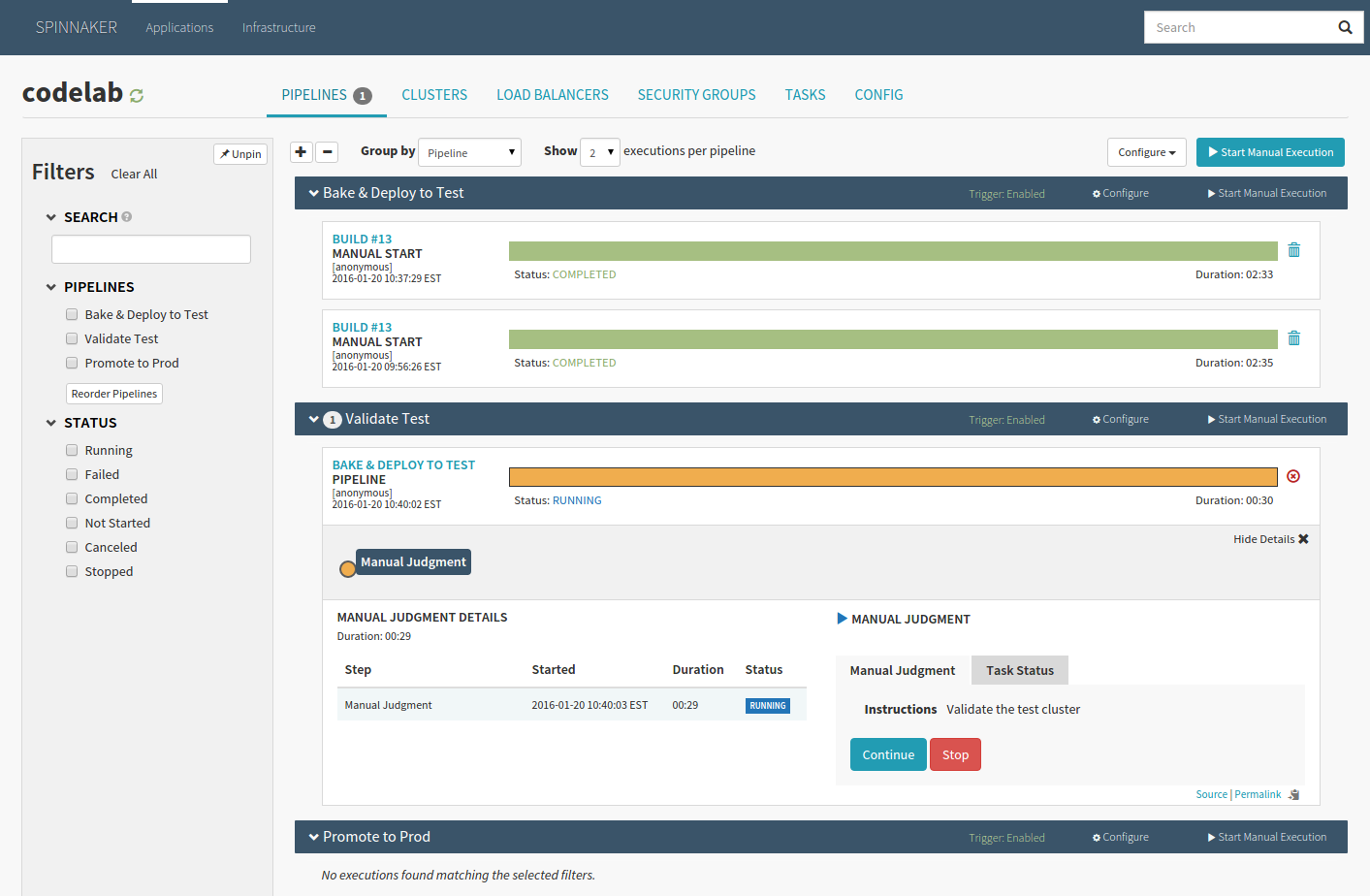

When the Bake & Deploy to Test pipeline completes, the Validate Test pipeline will trigger and wait for user input.

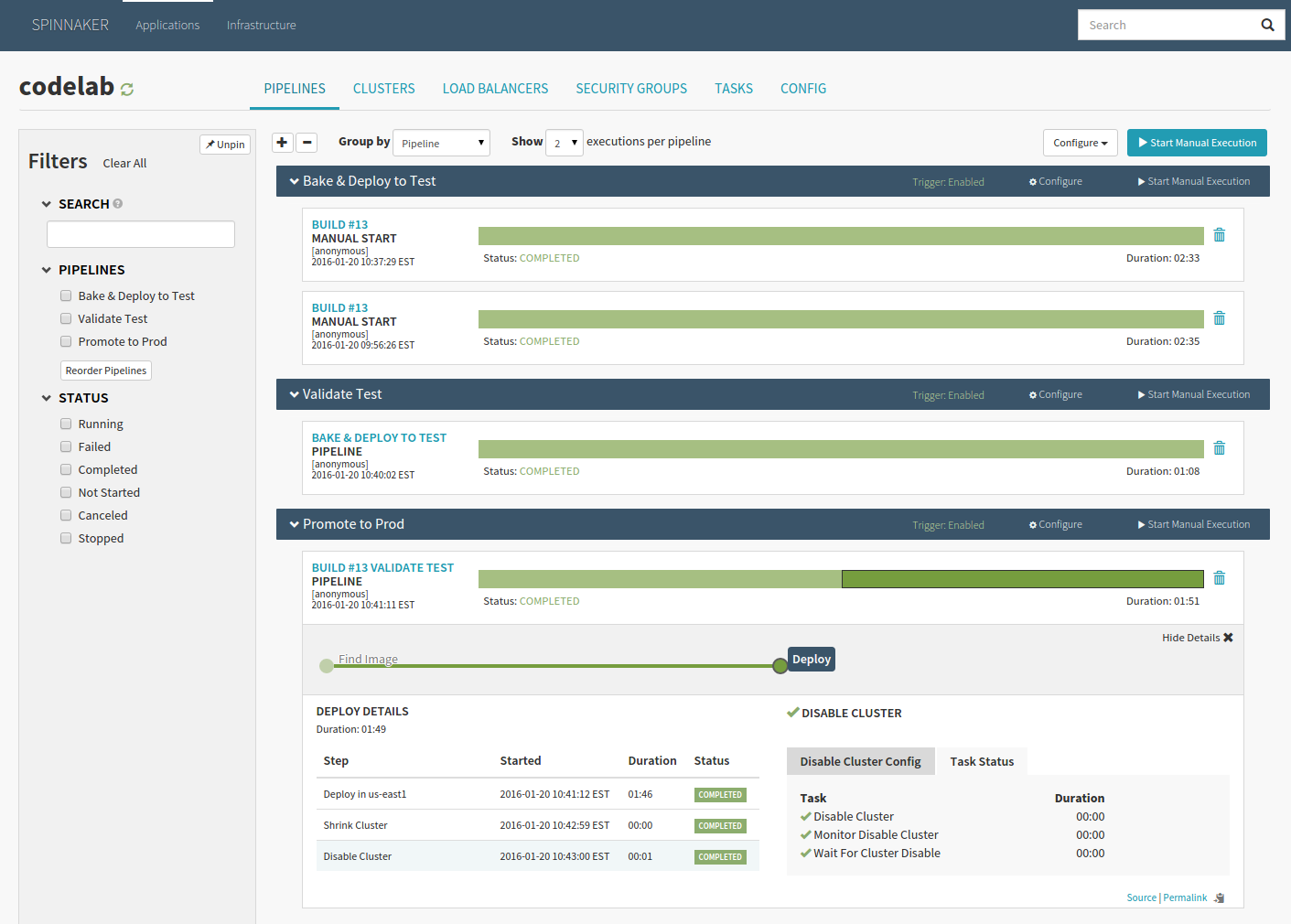

Click Continue. This will trigger the Promote to Prod pipeline:
In the CLUSTERS tab, you can see that a server group has been deployed to the prod cluster.
